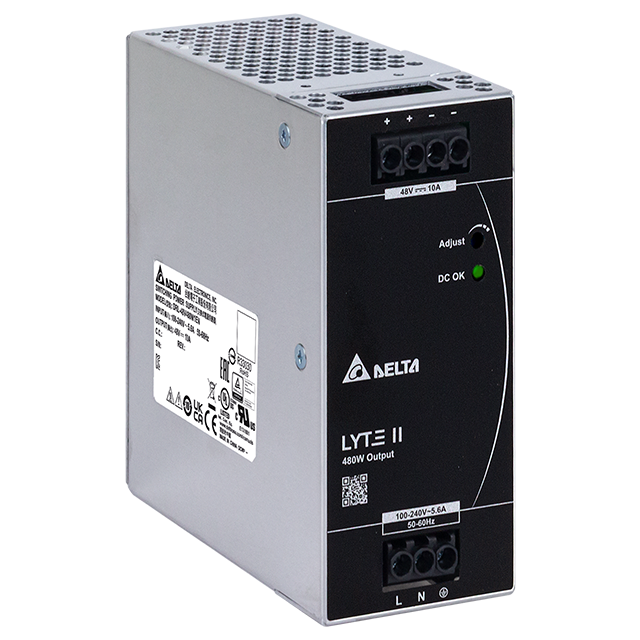

DRL-48V480W1EN

DIN Rail

LYTE II 系列

DRL-48V480W1EN

输出电压

48V

输出功率

480W

输出电流

10A

输入电压范围

90-264 Vac

尺寸 (H x W x D)

123.6 x 56 x 116.8 mm

4.87” x 2.20” x 4.60”

重量

0.87 kg (1.92 lb)

亮点与特色
  • 全球通用AC输入电压范围
  • 内置恒流电路适合非阻性负载
  • 高功率密度
  • -30°C 至 +70°C运行温度, -40°C 冷启动
  • 窄机身设计
  • 低空载功耗
  • 符合SEMI F47标准 @ 200Vac
Model Description
DRL-48V480W1ENA Conformal coating
应用领域
DRL-48V480W1EN
DRL-48V480W1EN

DIN Rail

LYTE II 系列

DRL-48V480W1EN

亮点与特色
  • 全球通用AC输入电压范围
  • 内置恒流电路适合非阻性负载
  • 高功率密度
  • -30°C 至 +70°C运行温度, -40°C 冷启动
  • 窄机身设计
  • 低空载功耗
  • 符合SEMI F47标准 @ 200Vac
输出电压

48V

输出功率

480W

输出电流

10A

输入电压范围

90-264 Vac

尺寸

123.6 x 56 x 116.8 mm

4.87” x 2.20” x 4.60”

重量

0.87 kg (1.92 lb)

应用领域
Model Description
DRL-48V480W1ENA Conformal coating
