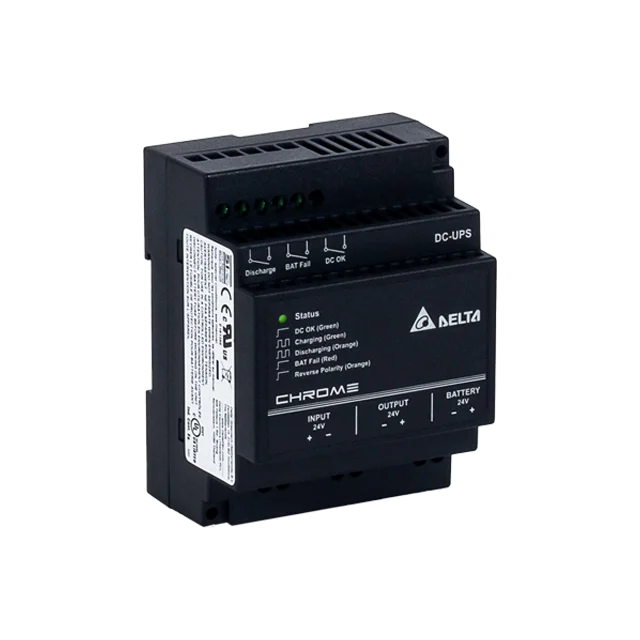

24V
240W
10A
24-28Vdc
91.0 x 71.0 x 55.6 mm
3.58” x 2.80” x 2.19”
0.14 kg (0.31 lb)
24V
240W
10A
24-28Vdc
91.0 x 71.0 x 55.6 mm
3.58” x 2.80” x 2.19”
0.14 kg (0.31 lb)
|
Output Current
10A
|
|
Output Voltage
24V
|
|
Output Voltage Range
23-28Vdc
|
|
Output Voltage Adjustment Range
-
|
|
Output Power
240W
|
|
Output Current Adjustment Range
|
|
Max Output Voltage
|
|
Buffering Time
Approx. 37 min at 24V/10A with 12AH battery
|
|
Line Regulation
-
|
|
Load Regulation
-
|
|
PARD
-
|
|
Start-up Time
-
|
|
Hold-up Time
-
|
|
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
|
|
Start-up with Capacitive Loads
-
|
|
Remote ON/OFF
-
|
|
Protective Device
-
|
|
Voltage Drop Between Input and Output
Charging Mode: 0.2V between DC input to load
Buffering Mode: 0.3V between battery to load @ 10A load |
|
Residual Ripple/PARD (20MHz)
-
|
|
Residual Ripple
-
|
|
Max. Power
-
|
|
Ripple & Noise
-
|
|
LED System Voltage Range in CC Mode
-
|
|
Rise Time
-
|
|
Power Boost Duration
-
|
|
Power Boost Recovery Time
-
|
|
Nominal Input Voltage
24Vdc
|
|
Input Voltage Range
24-28Vdc
|
|
Max Input Voltage
-
|
|
Nominal Input Frequency
-
|
|
Input Frequency Range
|
|
Nominal DC Input Voltage
|
|
DC Input Voltage Range
24-28 Vdc
|
|
Input Current
Charging Mode: 0.5 ± 0.1A
|
|
Input Power (Standby Mode)
-
|
|
Efficiency at 100% load
Charging Mode: > 80.0%
Buffering Mode: > 99.0% |
|
Inrush Current
-
|
|
Charging Time
< 30hr ± 5hr for battery 24V/12AH
|
|
Power Factor at 100% load
-
|
|
Leakage Current
-
|
|
Nominal Current
-
|
|
Total Harmonic Distortion
-
|
|
Power Dissipation
Standby Mode: < 1W
Charging Mode: < 3.5W Buffering Mode: < 1W |
|
Efficiency @ 10% load
-
|
|
Case Chassis / Cover
Plastic
|
|
|
Indicator
Green LED: DC OK, Battery Charging (flash)
Red LED: Battery Fail Orange LED: Reverse polarity, Battery Discharging (flash) |
|
|
Cooling System
Convection
|
|
|
Input Terminal
-
|
|
|
Output Terminal
-
|
|
|
Signal Terminal
-
|
|
|
Noise Sound Pressure Level (SPL)
< 40dBA
|
|
|
Input/Output Terminal
-
|
|
|
Signal
-
|
|
|
Mounting Rail
Standard TS35 DIN Rail in accordance with EN 60715
|
|
|
Wire
Input / Output / Battery: AWG 14-12
Signal: AWG 24-12 |
|
|
Protection Structure
-
|
|
|
Terminal
Input / Output / Battery: 6 Pins (Rated 300V / 25A)
Signal: 6 Pins (Rated 300V / 25A) |
|
|
Unit Weight
0.14 kg (0.31 lb)
|
Dimensions
91.0 x 71.0 x
55.6 mm
3.58” x 2.80” x 2.19” |
|
Vibration (Operating)
IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for all X, Y, Z directions
|
|
Shock Test (Operating)
IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms, 3 time per direction, 9 times in total
|
|
Operating Temperature
-20°C to +60°C (full power)
|
|
Storage Temperature
-25°C to +85°C
|
|
Power De-rating
-
|
|
Operating Humidity
5 to 95% RH (Non-condensing)
|
|
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 time per direction, 9 times in total
|
|
Vibration (Non-Operating)
IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms); 20 min per axis for all X, Y, Z directions
|
|
Storage Humidity
-
|
|
Operating Altitude
0 to 3,000 Meters (9,840 ft)
|
|
Pollution Degree
2
|
|
Bump Test (Operating)
-
|
|
Over Voltage Category
-
|
|
Corrosion
-
|
|
Overvoltage
Buffering Mode: 33Vdc Max will not cause damage to the unit, Latch Mode
|
|
Overload / Overcurrent
Buffering Mode: < 18A, Latch Mode
|
|
Over Temperature
Buffering Mode: < 90°C Surrounding Air Temperature inside the unit, Latch-off Mode
|
|
Short Circuit
Buffering Mode: Shutdown, Latch-off Mode
|
|
Reverse Polarity Protection
-
|
|
Degree of Protection
IP20
|
|
Protection Against Shock
Class III
|
|
Input Polarity Protection
Yes (DC OK = open contact, LED Status = Orange)
|
|
Battery Polarity Protection
Yes (DC OK = open contact, LED Status = Orange)
|
|
Wrong Battery Voltage Protection
Shutdown, 35V Max (the maximum voltage that will not cause damage to the unit)
|
|
Deep Discharge Protection
Yes (22V ± 1V)
|
|
Overload
-
|
|
Overcurrent
-
|
|
Internal Fuse
-
|
|
Insufficient Input Voltage Protection
-
|
|
Safety Certificate
-
|
|
Electrical Safety
SIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395) CB scheme: IEC 60950-1, IEC 62368-1 |
|
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
|
|
Medical Safety
-
|
|
Galvanic Isolation
Power Port to Signal Port: 1.0KVac
|
|
Industrial Control Equipment
UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
|
|
Hazardous Location / ATEX
-
|
|
II 3 G ATEX 2014/34/EU
-
|
|
Electrical Equipments of Machines
EN/BS EN 60204-1
|
|
Electrical Equipment for Use in Electrical Power Installations
IEC/EN/BS EN 62477-1/IEC 62103
|
|
Safety Entry Low Voltage
SELV (EN 60950-1)
|
|
Maritime
-
|
|
Material and Parts
-
|
|
Isolation Resistance
-
|
|
PE Resistance
-
|
|
UKCA
In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and
No. 1091 The Electromagnetic Compatibility Regulations 2016 |
|
Certificates for Other Countries
-
|
|
BIS
IS 13252-1
|
|
KC
-
|
|
Electrical Equipment for Measurement, Control, and Laboratory Use
-
|
|
ITE Safety
-
|
|
SIL3
-
|
|
Emission
(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B |
|
Immunity
EN/BS EN 55024, EN/BS EN 61000-6-2
|
|
Harmonic Current Emissions
-
|
|
Voltage Fluctuation and Flicker
-
|
|
ESD Immunity
-
|
|
Radiated Immunity
-
|
|
EFT
-
|
|
Surge
-
|
|
Conducted Immunity
-
|
|
Magnetic Field
-
|
|
Voltage Dips
-
|
|
Component Power Supply for General Use
EN 61204-3
|
|
Nominal Battery Voltage
24Vdc, SLA Sealed lead acid battery
2 x 12Vdc, SLA Sealed lead acid battery |
|
Battery Voltage Range
23-28Vdc (continuously operating) 33Vdc Max (the maximum voltage that will not cause damage to the unit) 20Vdc Min (the voltage level of battery to enable “BAT Fail” function)
|
|
Battery Capacity
3.3AH to 12AH
|
|
Battery Charging Mode
CC-CV mode (constant current-constant voltage) at 0.5A
|
|
End of Charge Voltage
The unit always charge with fix input voltage value
|
|
Battery Fuse
Auto 15A / 58V, MINI (Littelfuse) or similar in the battery path. The battery fuse protects the wires between the battery and the unit.
|
|
Battery Discharging Voltage Range
23-28Vdc
|
|
Battery Charging Current
Charging Mode: 0.5 ± 0.1A
|
|
Battery Current Consumption
-
|
|
Discharging Current
-
|
|
Recommended Charging Voltage
-
|
