PMC-05V050W1AA

Panel Mount

PMC Series

PMC-05V050W1AA

Output Voltage

Output Power

50W

Output Current

10A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

Unit Weight

0.26 kg (0.57 lb)

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B

** Discontinued Product **

Replaced by: PMT-5V50W1AA

Applications

Panel Mount

PMC Series

PMC-05V050W1AA

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B

** Discontinued Product **

Replaced by: PMT-5V50W1AA

Output Voltage

Output Power

50W

Output Current

10A

Input Voltage Range

85-264Vac

Dimensions

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

Unit Weight

0.26 kg (0.57 lb)

Applications

Download

Datasheet

Uploaded on 17-Aug-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 01-Oct-2026

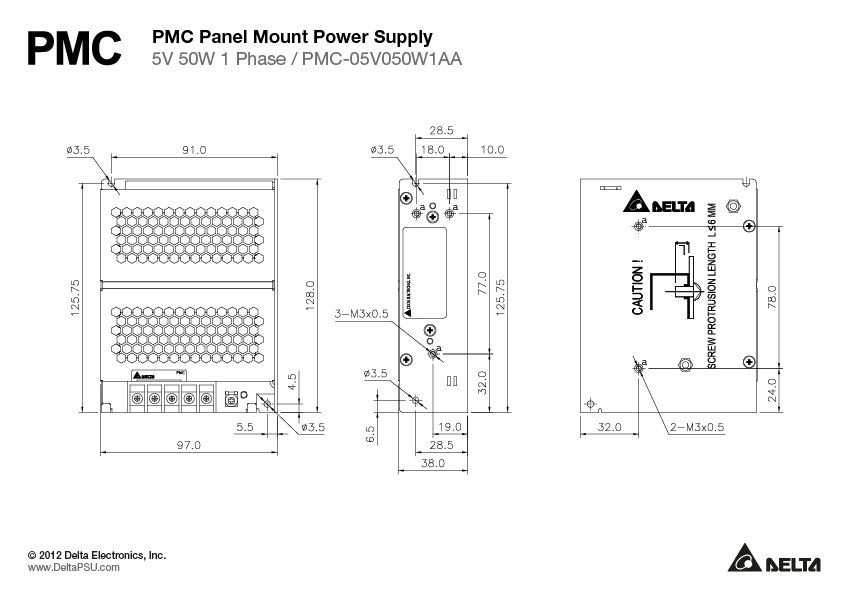

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 30-Nov-2020

CCC

Uploaded on 22-Apr-2020

Uploaded on 30-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 01-Mar-2021

REACH

Uploaded on 09-Oct-2025

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 30-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 17-Aug-2021

Uploaded on 30-Nov-2020

GUI Software

Tech Specs

Output Current

10A

Output Voltage

Output Voltage Adjustment Range

4.75-5.5Vdc

Output Power

50W

Line Regulation

< 0.5% (@ 85-264Vac input, 100% load)

Load Regulation

< 1.0% (@ 85-264Vac input, 0-100% load)

PARD

< 70mVpp

Start-up Time

< 2000ms @ nominal input (100% load)

Hold-up Time

> 15ms @ 115Vac, >80ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

< 30ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 1.1A @ 115Vac,
< 0.7A @ 230Vac

Efficiency at 100% load

> 79.0% @ 115Vac & 230Vac

Inrush Current

< 30A @ 115Vac,
< 65A @ 230Vac

Power Factor at 100% load

Conform to EN61000-3-2

Leakage Current

< 1mA @ 240Vac

Power Dissipation

0% load: < 1.2W @ 115Vac, < 1.7W @ 230Vac
100% load: < 13.2W @ 115Vac & 230Vac

Case Chassis / Cover Aluminium
Indicator Green LED DC OK
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) <40dBA
Input/Output Terminal M3.5 x 5 Pins (Rated 300VAC/15A)
Signal -
Mounting Rail -
Wire AWG 20-14
Protection Structure -
Terminal -
Unit Weight 0.26 kg (0.57 lb)	Dimensions 128 x 97 x 38 mm 5.04” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% /°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 1 times per direction, 6 times in total

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 3,000 Meters (9,840 ft)

Pollution Degree

Bump Test (Operating)

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

Over Voltage Category

Overvoltage

< 6.5V ±10%, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery).

Overload / Overcurrent

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery).

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332 I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart : EN 60950-1, EN 62368-1
UL/cUL recognized : UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme : IEC 60950-1, IEC 62368-1
KC : K 60950-1
CCC : GB/T9254, GB17625.1 and GB4943.1 仅适用于海拔 2000m 以下地区安全使用

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5 KVac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1

Emission

(CE & RE)
Generic Standards: CISPR32, EN/BS EN 55032, KN32, FCC Title 47: Class B

Immunity

Generic Standards: EN/BS EN 55024, KN35

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

(/3) Item(s) selected

PMC-05V050W1AA

Panel Mount

PMC Series

PMC-05V050W1AA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Applications

PMC-05V050W1AA

PMC-05V050W1AA

Panel Mount

PMC Series

PMC-05V050W1AA

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Download

Download

Tech Specs

Tech Specs

Looking for support for this product?

Looking for support for this product?

Related Products

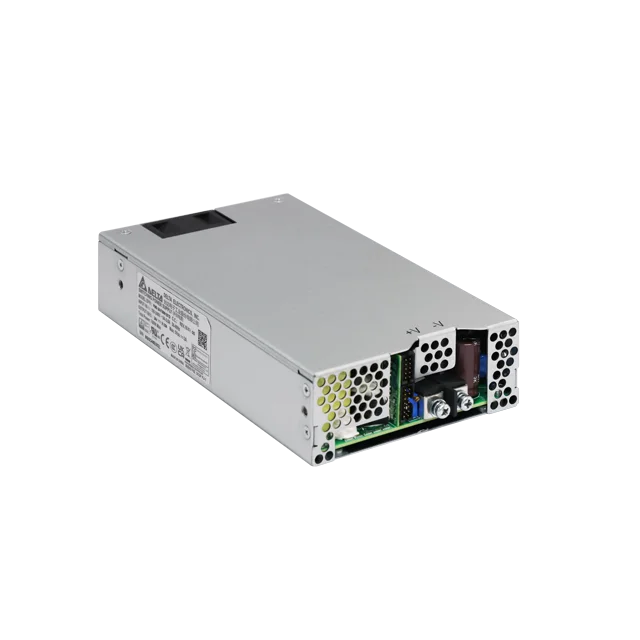

PMS-48V2K5W1BTD
