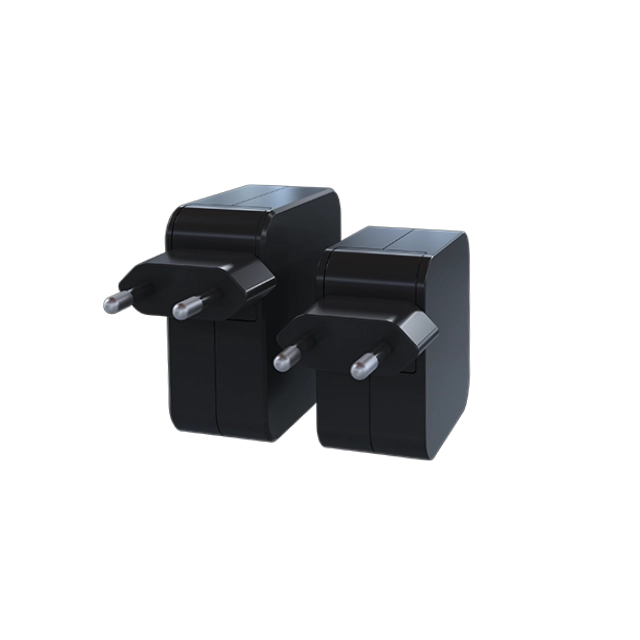

Delta ADP-30NW CNA 5V,9V,12V,15V,20V 30W 3A,3A,2.5A,2A,1.5A Adapter ADP Series

Tech Specs

Output Current

3A,3A,2.5A,2A,1.5A

Output Voltage

5V,9V,12V,15V,20V

Output Power

30W

Line Regulation

± 5%

Load Regulation

± 5%

PARD

< 350 mV pk-pk (5V/9V/12V/15V) @ 25°C
< 380 mV pk-pk (20V) @ 25°C

Hold-up Time

> 5 ms @ 100 Vac, 80% load, 20V only

Rise Time

< 40 ms @ 100~240 Vac, 100% load, 5V only

Peak Power

> 17.8V @ 150% Load, 2ms, 100~240 Vac, 20V only
> 17.8V @ 200% Load, 1ms, 100~240 Vac, 20V only

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

1.0 A max. @ 100 Vac

Inrush Current

Fuse I2t < 22% @ Cold Start

Leakage Current

100 uA max. @ 240 Vac/50 Hz

Average Efficiency

5V ≧ 81.84% ; 9V ≧ 87.30% ; 12V ≧ 87.69% ; 15V ≧ 87.69% ; 20V ≧ 87.69% @ 115 Vac & 230 Vac

No Load Power Consumption

0.075 W max. @ 115 Vac & 230 Vac, 5V only

Case Chassis / Cover PC
Indicator N/A
Cooling System Convection
Input Terminal Wall mount
Output Terminal Type-C
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.081 (0.00 lb)	Dimensions 50 x 50 x 28.5 mm 1.97” x 1.97” x 1.12”

Operating Temperature

0°C to +35°C

Storage Temperature

-30°C to +80°C

Operating Humidity

5%-90% RH (non-condensing)

Shock Test (Non-Operating)

50 G, 11 ms, 1 shock for each direction

Vibration (Non-Operating)

5-500 Hz, 2.09 Grms, 20 mins, one cycle for each three axis

Operating Altitude

5,000 meters (16,400 feet)

Overvoltage

<8.5V @ 5V ; <15V @ 9V ; <19V @ 12V ; <22V @ 15V ; <28V @ 20V, Latch mode

Overload / Overcurrent

3.05~3.9A @ 5V ; 3.05~3.9A @ 9V ; 2.55~3.4A @ 12V ; 2.05~2.9A @ 15V ; 1.55~2.4A @ 20V, Latch mode

Over Temperature

Latch mode

Short Circuit

Latch mode

Protection Against Shock

Class I

Pollution Degree

MTBF

> 100,000 hrs. at Input: 115 Vac, Output: 100% load, Ta: 25°C

Expected Cap Life Time

13140hours (100% load, 100Vac & 240Vac) @ 25°C

Case Temperature Rise

< 45°C @ 100Vac & 240Vac, Output: 100% load, Ta: 35°C

Safety Certificate

IEC/EN 62368-1, 60950
BSMI CNS 13438, 14336-1, 15663
PSE J62368-1, J55032, J3000
UL 62368-1, CSA 62368-1
PSB IEC 62368-1:2014, 60950-1:2005+A1:2009+A2:2013

Galvanic Isolation

I/P to O/P: 3000 Vac

CE/UKCA

Comply with EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU+ (EU) 2020/659 and Commission Regulation (EU) 2019/1782, ErP Directive

Emission

EN 55032 Criteria Class B

Immunity

Electrostatic Discharge IEC 61000-4-2
Radio Frequency Electromagnetic Field IEC 61000-4-3
Electrical Fast Transient IEC 61000-4-4
Surge IEC 61000-4-5
Radio Frequency Common Mode IEC 61000-4-6
Power Frequency Magnetic Fields IEC 61000-4-8
Voltage Dips IEC 61000-4-11

Harmonic Current Emissions

IEC 61000-3-2
The power consumption of EUT is less than 75W and no limits apply

Voltage Fluctuation and Flicker

IEC 61000-3-3
