Delta DRS-24V30W1AZ 24V 30W 1.25A DIN Rail SYNC Series

Download

Datasheet

Uploaded on 28-Feb-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 25-Dec-2023

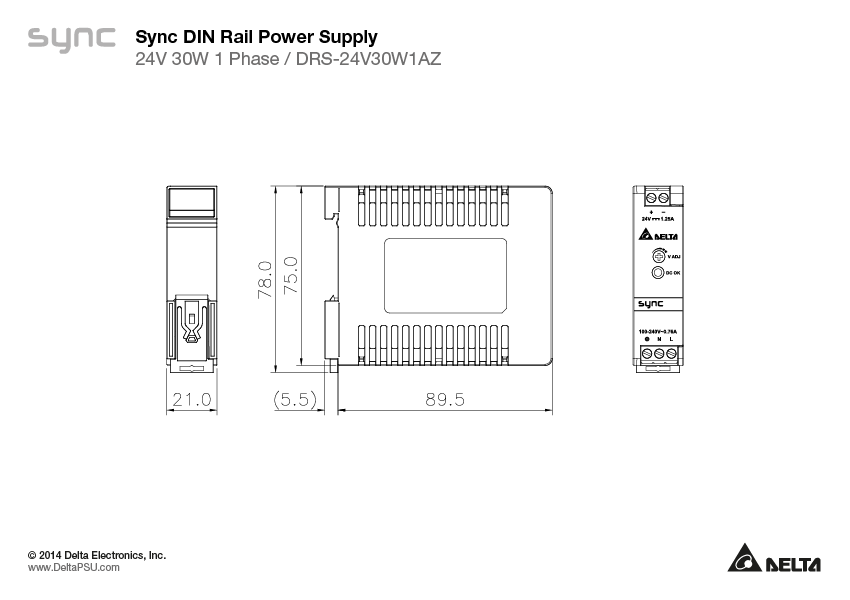

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 17-Aug-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2021

GUI Software

Tech Specs

Output Current

1.25A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

30W

Line Regulation

< 1% typ. (@ 85-264Vac, 100% load)

Load Regulation

< 1% typ. (@ 85-264Vac, 0-100% load)

PARD

< 150mVpp @ > 0°C to 70°C
< 500mVpp @ 0°C to -20°C

Start-up Time

< 3,000ms @ 115Vac
< 1,600ms @ 230Vac (100% load)

Hold-up Time

> 20ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-50% load, 50-100% (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)

Start-up with Capacitive Loads

3,000μF Max

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

< 0.80A@115Vac, < 0.40A @ 230Vac

Efficiency at 100% load

88.0% typ.@ 230Vac

Inrush Current

(Cold Start)
< 30A @ 115Vac ,< 60A @ 230Vac

Leakage Current

< 0.5mA @ 240Vac

Power Dissipation

No load: < 0.5W @ 115Vac & 230Vac
100% load: < 2.5W @ 115Vac & 230Vac

Case Chassis / Cover Plastic
Indicator Green LED: DC OK
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.10 kg (0.22 lb)	Dimensions 75 x 21 x 89.5 mm 2.95” x 0.83” x 3.52”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for X direction

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 1 shock for X direction

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

Temperature: -10°C to -20°C de-rate power by 5% / °C
> 55°C de-rate power by 3.33% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

Over Voltage Category

Overvoltage

< 34.8V, SELV Output, Auto-Recovery

Overload / Overcurrent

110-150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery when the fault is removed)

Over Temperature

Auto-Recovery

Short Circuit

Auto-Recovery when the fault is removed

Degree of Protection

IP20

Protection Against Shock

Class I with PE connection

MTBF

Telcordia SR-332: > 700,000 hrs.
I/P: 100Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, CSA C22.2 No. 60950-1 (File No. E131881)
UL 62368-1, CSA C22.2 No. 62368-1 (File No. E131881)
CB Scheme: IEC 60950-1, IEC 62368-1 Limited Power Source (LPS)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

Industrial Control Equipment

UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Safety Entry Low Voltage

SELV (EN 60950)

UKCA

In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091
The Electromagnetic Compatibility Regulations 2016

Emission

(CE & RE)
Generic Standards: EN 61000-6-3, EN 61000-6-4 CISPR 32, EN 55032, FCC Title 47: Class B

Immunity

Generic Standards: EN 55024

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3
