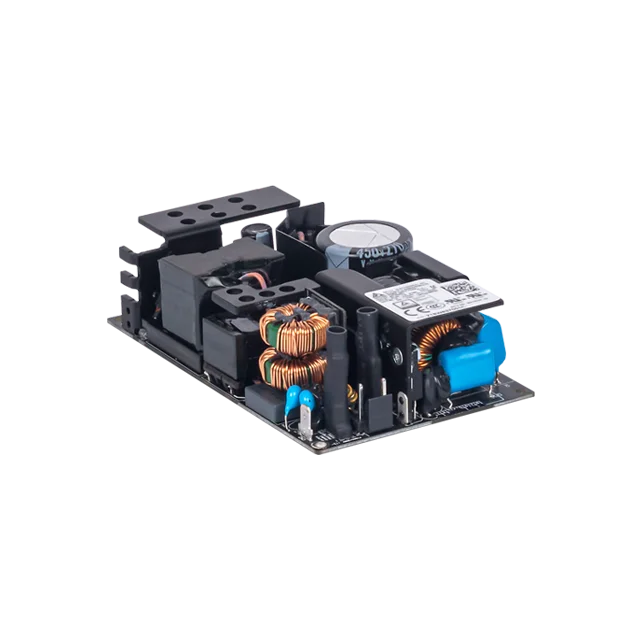

24V
400W
16.66A
90-264Vac
127 x 76.2 x 35.6 mm
5.00” x 3.00” x 1.40”
0.405 kg (0.89 lb)
| Model | Description |
|---|---|
| MDS-400APB24 AB | Without Remote On/Off |
24V
400W
16.66A
90-264Vac
127 x 76.2 x 35.6 mm
5.00” x 3.00” x 1.40”
0.405 kg (0.89 lb)
| Model | Description |
|---|---|
| MDS-400APB24 AB | Without Remote On/Off |
|
Output Current
16.66A
|
|
Output Voltage
24V
|
|
Output Voltage Range
|
|
Output Voltage Adjustment Range
-
|
|
Output Power
400W
|
|
Output Current Adjustment Range
|
|
Max Output Voltage
|
|
Buffering Time
-
|
|
Line Regulation
±0.5%
|
|
Load Regulation
±1%
|
|
PARD
-
|
|
Start-up Time
2000ms @ 115Vac
|
|
Hold-up Time
10ms @ 115Vac, with 400W load
|
|
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 50-100% load
|
|
Start-up with Capacitive Loads
-
|
|
Remote ON/OFF
-
|
|
Protective Device
-
|
|
Voltage Drop Between Input and Output
-
|
|
Residual Ripple/PARD (20MHz)
-
|
|
Residual Ripple
-
|
|
Max. Power
-
|
|
Ripple & Noise
1% pk-pk Vrated @ Full load
|
|
LED System Voltage Range in CC Mode
-
|
|
Rise Time
-
|
|
Power Boost Duration
-
|
|
Power Boost Recovery Time
-
|
|
Nominal Input Voltage
100-240Vac
|
|
Input Voltage Range
90-264Vac
|
|
Max Input Voltage
-
|
|
Nominal Input Frequency
50-60Hz
|
|
Input Frequency Range
47-63Hz
|
|
Nominal DC Input Voltage
|
|
DC Input Voltage Range
-
|
|
Input Current
5.5A
|
|
Input Power (Standby Mode)
-
|
|
Efficiency at 100% load
92% @ 115Vac/60Hz
93% @ 230Vac/50Hz |
|
Inrush Current
40A @ 230Vac, cold start
|
|
Charging Time
-
|
|
Power Factor at 100% load
-
|
|
Leakage Current
-
|
|
Nominal Current
-
|
|
Total Harmonic Distortion
-
|
|
Power Dissipation
-
|
|
Efficiency @ 10% load
-
|
|
Case Chassis / Cover
NA
|
|
|
Indicator
-
|
|
|
Cooling System
-
|
|
|
Input Terminal
-
|
|
|
Output Terminal
-
|
|
|
Signal Terminal
-
|
|
|
Noise Sound Pressure Level (SPL)
-
|
|
|
Input/Output Terminal
-
|
|
|
Signal
-
|
|
|
Mounting Rail
-
|
|
|
Wire
-
|
|
|
Protection Structure
-
|
|
|
Terminal
-
|
|
|
Unit Weight
0.405 kg (0.89 lb)
|
Dimensions
127 x 76.2 x
35.6 mm
5.00” x 3.00” x 1.40” |
|
Vibration (Operating)
5-500 Hz, 2 Grms, 15 minute for each three axis
|
|
Shock Test (Operating)
-
|
|
Operating Temperature
-10°C to +70°C,
|
|
Storage Temperature
-40°C to +85°C
|
|
Power De-rating
power linearly de-rate from 50°C to 50% rated up to 70°C with 12 CFM forced air
|
|
Operating Humidity
5-95% RH (Non-Condensing)
|
|
Shock Test (Non-Operating)
50G, 11ms, 3 shocks for each direction
|
|
Vibration (Non-Operating)
-
|
|
Storage Humidity
-
|
|
Operating Altitude
-
|
|
Pollution Degree
-
|
|
Bump Test (Operating)
-
|
|
Over Voltage Category
-
|
|
Corrosion
-
|
|
Overvoltage
135% of rated voltage, Latch Mode
|
|
Overload / Overcurrent
Main output 160% of rated current
Standby 3A max Hiccup Mode(Non-Latching, Auto-Recovery) |
|
Over Temperature
Latch Mode
|
|
Short Circuit
Hiccup Mode,
(Non-Latching, Auto-Recovery) |
|
Reverse Polarity Protection
-
|
|
Degree of Protection
-
|
|
Protection Against Shock
-
|
|
Input Polarity Protection
-
|
|
Battery Polarity Protection
-
|
|
Wrong Battery Voltage Protection
-
|
|
Deep Discharge Protection
-
|
|
Overload
-
|
|
Overcurrent
-
|
|
Internal Fuse
-
|
|
Insufficient Input Voltage Protection
-
|
|
MTBF
500 kHrs based on Telecordia SR-332 at 100 Vac, 400 W, ambient 25 °C
|
|
Expected Cap Life Time
26,280 Hrs at 115 Vac, 400 W, ambient 25 °C,
|
|
Safety Certificate
IEC60950-1 CB report
IEC62368-1 TUV60950-1 UL60950-1+CAN/CSA60950-1 |
|
Electrical Safety
-
|
|
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1L 2013 + A12: 2014 & EN 60601-1-2: 2015 |
|
Medical Safety
IEC 60601-1 CB report
TUV EN 60601-1 UL 60601-1+CAN/CSA 60601-1 |
|
Galvanic Isolation
Input to/Output (2XMOPP): 4000 Vac
Input to/Ground(1XMOPP): 1500 Vac Output to/Ground(1XMOPP): 1500 Vac (Type BF application rated) |
|
Industrial Control Equipment
-
|
|
Hazardous Location / ATEX
-
|
|
II 3 G ATEX 2014/34/EU
-
|
|
Electrical Equipments of Machines
-
|
|
Electrical Equipment for Use in Electrical Power Installations
-
|
|
Safety Entry Low Voltage
-
|
|
Maritime
-
|
|
Material and Parts
-
|
|
Isolation Resistance
-
|
|
PE Resistance
-
|
|
UKCA
In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
|
|
Certificates for Other Countries
-
|
|
BIS
-
|
|
KC
-
|
|
Electrical Equipment for Measurement, Control, and Laboratory Use
-
|
|
ITE Safety
-
|
|
SIL3
-
|
|
Emission
EN/BS EN 55011 & compliant with EN/BS EN 55032, FCC Title 47:Class B
|
|
Immunity
-
|
|
Harmonic Current Emissions
IEC 61000-3-2 Class D limit
|
|
Voltage Fluctuation and Flicker
IEC 61000-3-3
|
|
ESD Immunity
-
|
|
Radiated Immunity
-
|
|
EFT
-
|
|
Surge
-
|
|
Conducted Immunity
-
|
|
Magnetic Field
-
|
|
Voltage Dips
-
|
|
Component Power Supply for General Use
-
|
24V
600W
-
90-264 Vac
