PMC-DSPV100W1A

Panel Mount

PMC Series

PMC-DSPV100W1A

Output Voltage

24V,5V

Output Power

100W

Output Current

2.7A,7A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.52 kg (1.15 lb)

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonics current IEC/EN 61000-3-2, Class A
High MTBF >700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55022, Class B

** NRND **

Applications

Panel Mount

PMC Series

PMC-DSPV100W1A

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonics current IEC/EN 61000-3-2, Class A
High MTBF >700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55022, Class B

** NRND **

Output Voltage

24V,5V

Output Power

100W

Output Current

2.7A,7A

Input Voltage Range

85-264Vac

Dimensions

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.52 kg (1.15 lb)

Applications

Download

Datasheet

Uploaded on 01-Nov-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 08-Apr-2025

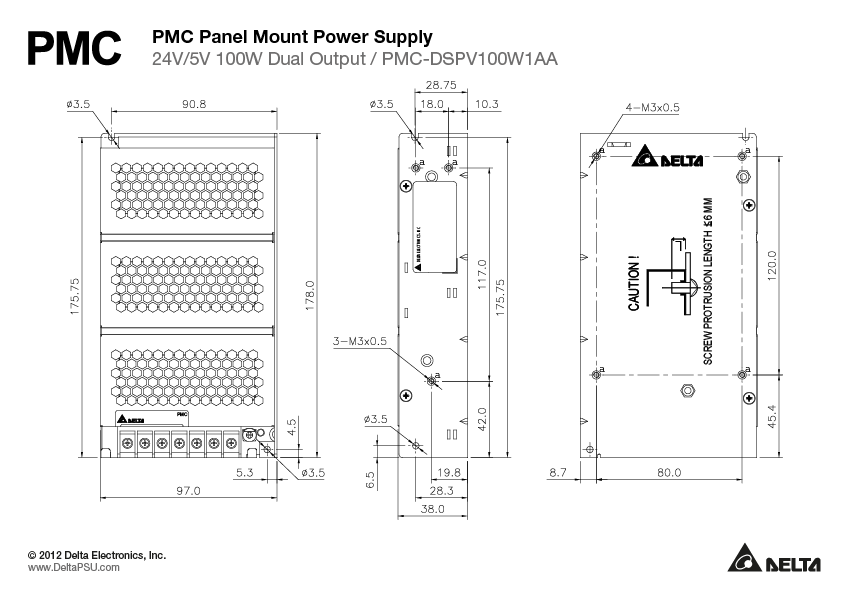

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 02-Dec-2020

CCC

Uploaded on 31-Mar-2021

Uploaded on 02-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-Oct-2025

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 02-Dec-2020

UKCA

Uploaded on 01-Nov-2021

Uploaded on 02-Dec-2020

GUI Software

Tech Specs

Output Current

2.7A,7A

Output Voltage

24V,5V

Output Voltage Adjustment Range

V1 : 22.8-26.4Vdc

Output Power

100W

Line Regulation

< 0.5% typ. (@ 85-264Vac input, 100% load)

Load Regulation

< 1% Typical (@ 85 to 264Vac input, V1: 100% rated load and V2: 60% rated load and vice versa)

PARD

V1: <200mVpp, V2: <80mVpp

Start-up Time

< 1000ms @ nominal input (100% load)

Hold-up Time

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ V1: 0

Start-up with Capacitive Loads

V1: 4,000JF Max

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 2.0A @ 115Vac, < 1.1A @ 230Vac

Efficiency at 100% load

> 84% @ 115Vac,
> 86% @ 230Vac

Inrush Current

< 50A @ 115Vac, < 100A @ 230Vac

Power Factor at 100% load

Conform to EN61000-3-2, Class A

Leakage Current

< 1mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.52 kg (1.15 lb)	Dimensions 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% /°C

Operating Humidity

< 95% RH

Shock Test (Non-Operating)

IEC60068

Vibration (Non-Operating)

IEC60068

Overvoltage

V1: < 32.4V, V2: 6.75V, Hiccup Mode, Non-Latching (Auto recovery)

Overload / Overcurrent

OLP: > 150% of total rated output power, Hiccup Mode, Non-Latching (Auto recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-recovery).

Short Circuit

Hiccup Mode, Non-Latching
(Auto-recovery when the fault is removed)

Degree of Protection

IPX0

MTBF

> 700,000 hrs. per Telcordia SR-332

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
cRUus: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB4943

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

Generic Standards: CISPR32, EN/BS EN 55032, FCC Title 47: Class B, GB 9254

Immunity

Generic Standards: EN/BS EN 55024
