PMF-24V320WCGB

Panel Mount

PMF Series

PMF-24V320WCGB

Output Voltage

24V

Output Power

320W

Output Current

13.33A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.84 kg (1.85 lb)

Highlights & Features

Universal AC input voltage
Built-in active PFC and fan speed control
Full corrosion resistant aluminium chassis
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A and Class D
Cold start -20°C at 100% load (320W)
Remote ON/OFF is available as an option

** NRND **

PMF-24V320WCGR, PMF-24V320WCAB, PMF-24V320WCAR

Recommended Model: PMR-24V320W1AT

Optional Models

Model	Description
PMF-24V320WCGR	Front face connector, remote ON/OFF
PMF-24V320WCAB	Terminal block
PMF-24V320WCAR	Terminal block, remote ON/OFF

Applications

Panel Mount

PMF Series

PMF-24V320WCGB

Highlights & Features

Universal AC input voltage
Built-in active PFC and fan speed control
Full corrosion resistant aluminium chassis
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A and Class D
Cold start -20°C at 100% load (320W)
Remote ON/OFF is available as an option

** NRND **

PMF-24V320WCGR, PMF-24V320WCAB, PMF-24V320WCAR

Recommended Model: PMR-24V320W1AT

Output Voltage

24V

Output Power

320W

Output Current

13.33A

Input Voltage Range

85-264Vac

Dimensions

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.84 kg (1.85 lb)

Applications

Optional Models

Model	Description
PMF-24V320WCGR	Front face connector, remote ON/OFF
PMF-24V320WCAB	Terminal block
PMF-24V320WCAR	Terminal block, remote ON/OFF

Download

Datasheet

Uploaded on 02-Jun-2025

Manual

Uploaded on 22-Apr-2020


Uploaded on 18-Jul-2025

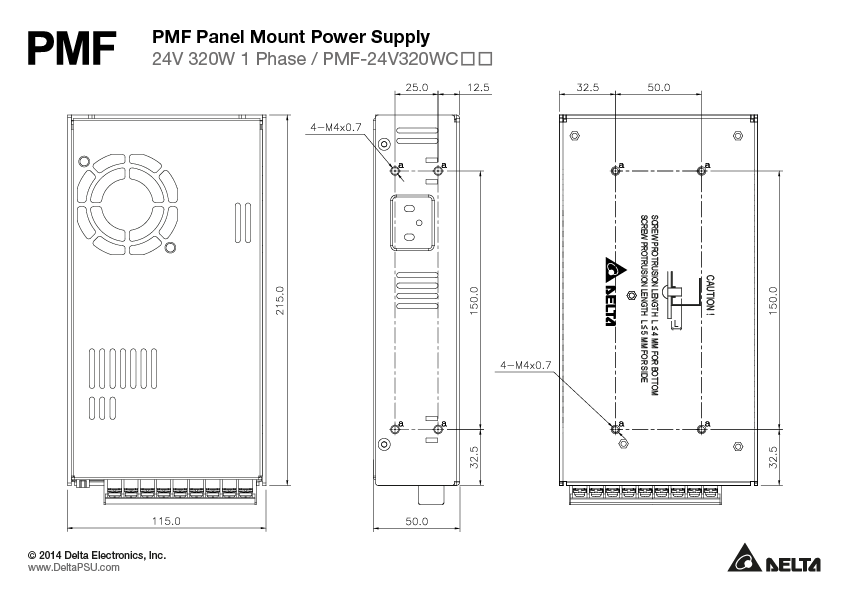

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Jan-2023

CCC

Uploaded on 02-Jun-2025

CE & UKCA

Uploaded on 06-Jul-2021

REACH

Uploaded on 09-Oct-2025

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 10-Nov-2020

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

13.33A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

320W

Line Regulation

± 0.2% typ. (@ 115Vac & 230Vac)

Load Regulation

± 1.0% typ. (@ 115Vac & 230Vac)

PARD

< 150mVpp @ 25°C
< 300mVpp @ -10°C

Start-up Time

2500ms typ. @ 115Vac,
800ms typ. @ 230Vac (100% load)

Hold-up Time

20ms typ. @ 115Vac & 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% (2.4V pk-pk) @ 115Vac & 230Vac (0-100% load)

Start-up with Capacitive Loads

8,000µF Max

Remote ON/OFF

CN102
Output ON: 5-12.5 V
Output OFF: 0-0.5 V

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Input Frequency Range

47-63Hz

Input Current

< 5.00A @ 115Vac,
< 2.50A @ 230Vac

Efficiency at 100% load

87.0% typ. @ 230Vac

Power Factor at 100% load

0.98 typ. @ 115Vac,
0.95 typ. @ 230Vac

Leakage Current

< 1mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator -
Cooling System Forced Cooling
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.84 kg (1.85 lb)	Dimensions 215 x 115 x 50 mm 8.46” x 4.53” x 1.97”

Operating Temperature

-10°C to +70°C (Cold start at -20°C)

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 1.33% / 1V

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Overvoltage

27.6-32.4V, Latch Mode (AC power is recycled)

Overload / Overcurrent

105-150%, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE(Primary Earth) connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C

Electrical Safety

TUV Bauart:EN 60950-1, EN 62368-1
UL/cUL recognized:UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)
UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme:IEC 60950-1, IEC 62368-1
CCC: GB4943.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac

Safety Entry Low Voltage

SELV (EN 60950-1)

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016
and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 22, EN/BS EN 55022, FCC Title 47: Class B

Immunity

EN/BS EN 55024

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A and Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
