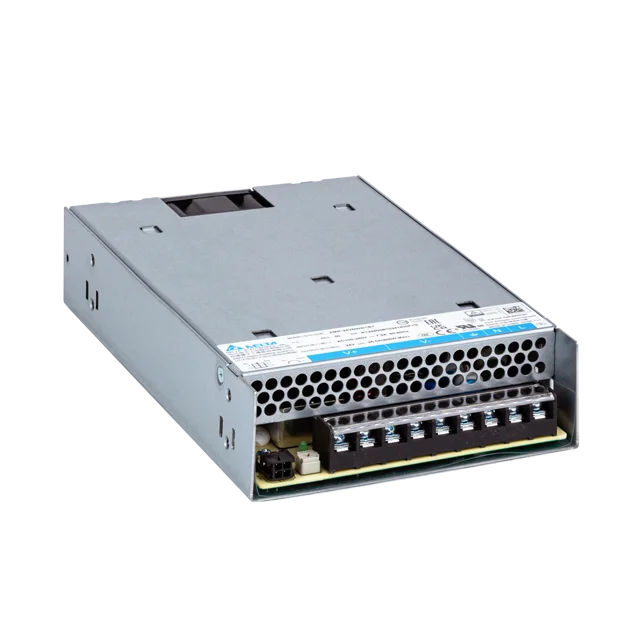

PMH-24V150WCBS

Panel Mount

PMH Series

PMH-24V150WCBS

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.56 kg (1.23 lb)

Highlights & Features

Household appliance approvals IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage
Full power from -20°C to +50°C operation @ 5000m or 16400 ft. altitude
Full corrosion resistant aluminium casing
High MTBF > 700,000 hrs as per Telcordia SR-332
Versatile connector options available: IP20, Front Face and Harness connectors
Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

PMH-24V150WCBH, PMH-24V150WCBJ, PMH-24V150WCBL, PMH-24V150WCBT, PMH-24V150WCBU, PMH-24V150WCBV

Recommended Model: PMH-24V150WCBA

** NRND **

PMH-24V150WCBS

Recommended Model: PMT-24V150W2BA

Optional Models

Model	Description
PMH-24V150WCBA	Terminal block, output non-isolated to PE

Applications

Panel Mount

PMH Series

PMH-24V150WCBS

Highlights & Features

Household appliance approvals IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage
Full power from -20°C to +50°C operation @ 5000m or 16400 ft. altitude
Full corrosion resistant aluminium casing
High MTBF > 700,000 hrs as per Telcordia SR-332
Versatile connector options available: IP20, Front Face and Harness connectors
Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

PMH-24V150WCBH, PMH-24V150WCBJ, PMH-24V150WCBL, PMH-24V150WCBT, PMH-24V150WCBU, PMH-24V150WCBV

Recommended Model: PMH-24V150WCBA

** NRND **

PMH-24V150WCBS

Recommended Model: PMT-24V150W2BA

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

85-264Vac

Dimensions

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.56 kg (1.23 lb)

Applications

Optional Models

Model	Description
PMH-24V150WCBA	Terminal block, output non-isolated to PE

Download

Datasheet

Uploaded on 09-Apr-2022

Manual

Uploaded on 20-May-2022


Uploaded on 08-Apr-2025

Mechanical Drawing

Uploaded on 09-Apr-2022

.DXF

Uploaded on 09-Apr-2022

.STP

Uploaded on 09-Apr-2022

Certificates

Uploaded on 08-Jan-2021

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 08-Jan-2021

TSCA

Uploaded on 15-Nov-2023

Uploaded on 08-Jan-2021

GUI Software

Tech Specs

Output Current

6.25A

Output Voltage

24V

Output Voltage Adjustment Range

22-28Vdc

Output Power

150W

Line Regulation

< 0.5% (@ 85-264Vac input, 100% load)

Load Regulation

< 0.5% (@ 85-264Vac input, 0-100% load)

PARD

< 100mVpp

Start-up Time

< 2200ms (@100Vac -20°C to 70°C) &
< 2500ms (@100Vac < -20°C to -30°C)
< 1000ms (@240Vac -30°C to 70°C)

Hold-up Time

> 40ms @ 115Vac, > 50ms 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 100Hz)

Start-up with Capacitive Loads

8,000μF Max
(@ > -20°C, 85-264Vac input & @ ≤ -20°C, 100-264Vac input)

Rise Time

< 35ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-375Vdc

Input Current

< 1.60A @ 115Vac, < 0.90A @ 230Vac

Efficiency at 100% load

> 89.0% @ 115Vac,
> 90.5% @ 230Vac

Inrush Current

< 30A @ 115Vac, < 60A @ 230Vac

Power Factor at 100% load

> 0.98 @ 115Vac, > 0.89 @ 230Vac

Leakage Current

< 1.2mA @ 240Vac

Power Dissipation

0% load: < 0.08W @ 115Vac & < 1.0W @ 230Vac
100% load: 18.5W typ. @ 115Vac & 15.8W typ. @ 230Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.56 kg (1.23 lb)	Dimensions 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

Operating Temperature

-30°C to +70°C

Storage Temperature

-30°C to +85°C

Power De-rating

-20°C to -30°C de-rate power by 2.0% / °C
> 50°C de-rate power by 2.5% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,1 times per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Bump Test (Operating)

IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 6000 times in total

Over Voltage Category

Overvoltage

28.8-35.2V range, Hiccup Mode,
Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 60950-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EC

Galvanic Isolation

Input to Output : 4.5KVac
Input to Ground : 1.5KVac

Output to Ground :
Output non-isolated to PE (common pins connect to PE)(PMH-24V150WC☐A, PMH-24V150WC☐J, PMH-24V150WC☐L, PMH-24V150WC☐H)
1.5KVdc (Output isolated to PE) (PMH-24V150WC☐S, PMH-24V150WC☐U, PMH-24V150WC☐V, PMH-24V150WC☐T)

Safety Entry Low Voltage

Output non-isolated to PE: PELV (EN 60335), SELV (IEC 60950)
Output isolated to PE: SELV (EN 60335), SELV (IEC 60950)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

Generic Standards:
CISPR 32, EN/BS EN 55032,
EN/BS EN 55014-1, EN/BS EN 61000-6-3m FCC Title 47: Class B

Immunity

EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 55014-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
