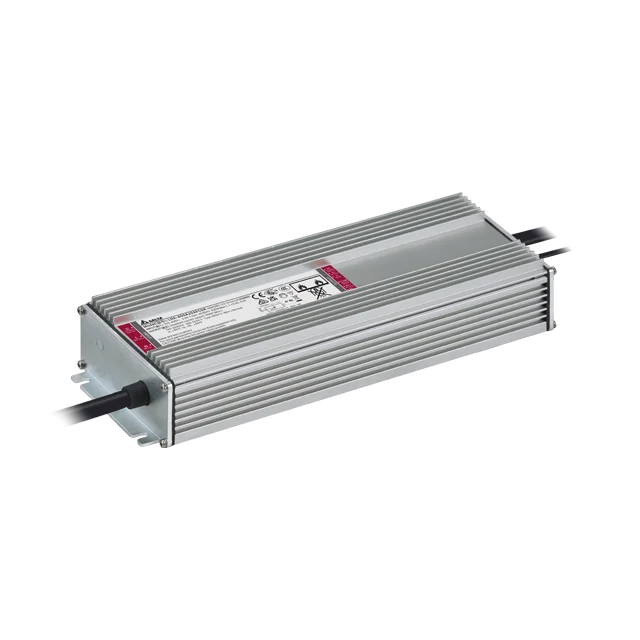

LNA-1K2D12ABFGB

LED Driver

LNA ARENA SPORT 系列

LNA-1K2D12ABFGB

输出电压

50-370V

输出功率

1200W

输出电流

1.2A

输入电压范围

187-528 Vac

尺寸 (L x W x H)

500 x 152 x 77 mm

19.69” x 5.98” x 3.03”

重量

5.1 kg (11.24 lb)

亮点与特色

4 independent programmable output channels
Configurable channel address mode (1*DT6 / 1*DMX or 4*DT6 or 4*DMX)
Max. output power 1200W (4×300W/channel)
Input voltage range: 187~528VAC
High Efficiency up to 97%
Programmable output current range 150-1200 mA
Output voltage range of 50-370Vdc per channel
Built-in 2 in 1: DALI-2 & D4i and DMX/RDM communication protocols
Wide dimming range 0.1-100%
Flicker-free for HDTV broadcasting
Strobe effects up to 33 fps
After-glow effect free
Constant lumen output(CLO)
Smart timer dimming(STD)
High-accuracy integrated power metering
Max remote distance 300 meters
Input surge protection: DM 10KV / CM 10KV

应用领域

LED Driver

LNA ARENA SPORT 系列

LNA-1K2D12ABFGB

亮点与特色

4 independent programmable output channels
Configurable channel address mode (1*DT6 / 1*DMX or 4*DT6 or 4*DMX)
Max. output power 1200W (4×300W/channel)
Input voltage range: 187~528VAC
High Efficiency up to 97%
Programmable output current range 150-1200 mA
Output voltage range of 50-370Vdc per channel
Built-in 2 in 1: DALI-2 & D4i and DMX/RDM communication protocols
Wide dimming range 0.1-100%
Flicker-free for HDTV broadcasting
Strobe effects up to 33 fps
After-glow effect free
Constant lumen output(CLO)
Smart timer dimming(STD)
High-accuracy integrated power metering
Max remote distance 300 meters
Input surge protection: DM 10KV / CM 10KV

输出电压

50-370V

输出功率

1200W

输出电流

1.2A

输入电压范围

187-528 Vac

尺寸

500 x 152 x 77 mm

19.69” x 5.98” x 3.03”

重量

5.1 kg (11.24 lb)

应用领域

资源下载

Datasheet

Uploaded on 23-Sep-2025

Manual

Uploaded on 24-Apr-2025


Uploaded on 16-Jun-2025

.DXF

Uploaded on 24-Apr-2025

认证

Uploaded on 24-Apr-2025

CCC

Uploaded on 24-Apr-2025

ENEC

Uploaded on 24-Apr-2025

RCM

Uploaded on 03-Nov-2025

UKCA

Uploaded on 24-Apr-2025

GUI Software

Tech Specs

输出电流

1.2A

输出电压

50-370V

输出电压范围

50-370Vdc

输出功率

1200W

输出电流调整范围

0.15-1.2A

最大输出电压

370Vdc

额定输入电压

208-480 Vac

输入电压范围

187-528 Vac

额定输入频率

50/60 Hz

输入频率范围

47-63Hz

输入电流

5.7A Typ. At 1-ph L/N 220Vac, 1.2A* 250V=300W per channel, total 1200W
3.1A Typ. At 2-ph L1/L2 400Vac, 1.2A* 250V=300W per channel, total 1200W

输入功率（待机模式）

0.5W At 220Vac/50Hz, Dim OFF, in compliance with Erp(EU) 2019/2020

100% 负载效率

95% Typ. At 1-ph L/N 220Vac, 1.2A* 250V=300W per channel, total 1200W
96% Typ. At 2-ph L1/L2 400Vac, 1.2A* 250V=300W per channel, total 1200W

涌入电流

12A At 220Vac，50%Apk to 50%Apk time: <2 ms
20A At 400Vac，50%Apk to 50%Apk time: < 2ms

功率因数

0.99 Typ. At 1-ph L/N 220Vac, Full load
0.99 Typ. At 2-ph L1/L2 400Vac, Full load

谐波失真总量

6% Typ. At 1-ph L/N 220Vac, total Pout=1200W Load
12% At 2-ph L1/L2 400Vac, total Pout=1200W Load

底座 / 外壳上盖 Aluminum case, Dark Gray, compliance with C5 environment (ISO 9223)
指示灯 -
冷却方式 Natural Convection
输入端 With the sign of L1, L2, PE
输出端 With the sign of PE, NTC, V2+, V2-, V1+, V1-
信号端 -
声压级（SPL） < 24dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 5.1 kg (11.24 lb)	尺寸 500 x 152 x 77 mm 19.69” x 5.98” x 3.03”

运行温度

-40 ~+50°C

储存温度

-40°C to +85°C

运行湿度

10% to 90% RH (Non-Condensing)

振动测试（非运行状态）

IEC 60068-2-6, Random: 5 Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction

储藏湿度

10% to 90% RH (Non-Condensing)

防护等级

IP66 (EN 60529)

MTBF

475khrs. at Ta=+45°C Telcordia SR-332

预计最长使用寿命

50,000 hours applicable for 220Vac to 480Vac(50/60Hz)@100% of load, Ta=50°C (Tcase=80°C)

Safety Certificate

ENEC:
EN 61347-1:2015, EN 61347-1:2015/A1:2021
EN 61347-2-13:2014, EN 61347-2-13/A1:2017
IEC/EN 62384:2020

CB: EN 61347-1:2015, EN 61347-1:2015/A1:2021
EN 61347-2-13:2014, EN 61347-2-13/A1:2017

RCM: AS/NZS 61347-1: 2016+A1
AS 61347-2-13: 2018

UL: UL Compliant ANSI / UL8750 2nd Ed.
CSA C22.2 No.250.13, 4th Ed.

CCC: GB 19510.1
GB 19510.14

CE Declaration of Conformity.

UKCA

BS EN 61347-2-13: 2014+A1:2017

排放

Radiated Emission: EN55015, GB/T17743, FCC Part 15, Subpart B
Conducted Emission: EN55015, GB/T17743, FCC Part 15, Subpart B

谐波电流排放

IEC/EN 61000-3-2, GB 17625.1

电压波动和闪变

IEC/EN 61000-3-3

ESD 抗扰度

IEC/EN 61000-4-2

EFT

IEC/EN 61000-4-4

电涌

(AC Mains)
IEC/EN 61000-4-5
- Common Mode: 10kV (L1 to Earth, L2 to Earth)
- Differential Mode: 10kV (L1 to L2)

磁场

IEC/EN 61000-4-3

电压骤降

IEC/EN 61000-4-11
