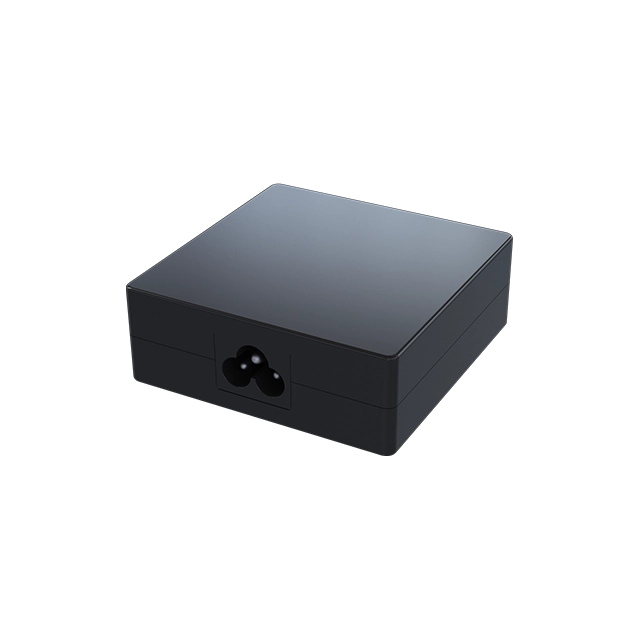

Delta ADP-45HG BN 5V,9V,12V,15V,20V 45W 3A,3A,3A,3A,2.25A Adapter ADP Series

Tech Specs

Output Current

3A,3A,3A,3A,2.25A

Output Voltage

5V,9V,12V,15V,20V

Output Power

45W

Line Regulation

± 5%

Load Regulation

± 5%

PARD

< 180 mV pk-pk (5V) @ 25°C
< 210 mV pk-pk (9V) @ 25°C
< 250mV pk-pk (12V) @ 25°C
< 300mV pk-pk (15V/20V) @ 25°C

Hold-up Time

> 5 ms @ 100 Vac, 80% load, 20V only

Peak Power

> 17V @ 180% Load, 2ms, 100~240 Vac, 20V only

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

1.5 A max. @ 100 Vac

Inrush Current

No damage @ Cold Start

Leakage Current

50 uA max. @ 240 Vac/50 Hz

Average Efficiency

5V ≧ 81.84% ; 9V ≧ 87.30% ; 12V ≧ 88.3% ; 15V ≧ 88.85% ; 20V ≧ 88.85% @ 115 Vac & 230 Vac

No Load Power Consumption

0.075 W max. @ 115 Vac & 230 Vac, 5V only

Case Chassis / Cover PC
Indicator N/A
Cooling System Convection
Input Terminal C6
Output Terminal Type-C, Length: 1500 ±30 mm
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.17 (0.00 lb)	Dimensions 92 x 45.5 x 26.3 mm 3.62” x 1.79” x 1.04”

Operating Temperature

0°C to +35°C

Storage Temperature

-30°C to +80°C

Operating Humidity

5%-90% RH (non-condensing)

Shock Test (Non-Operating)

50 G, 11 ms, 1 shock for each direction

Vibration (Non-Operating)

5-500 Hz, 2.09 Grms, 20 mins, one cycle for each three axis

Operating Altitude

5,000 meters (16,400 feet)

Overvoltage

6.25~7.5V @ 5V ; 11.2~13.5V @ 9V ; 13.2~16V @ 12V ; 17.5~19.5V @ 15V ; 22~26V @ 20V, Latch mode

Overload / Overcurrent

3.6~4.3A @ 5V ; 3.6~4.3A @ 9V ; 3.6~4.3A @ 12V ; 3.6~4.3A @ 15V ; 2.6~3.1A @ 20V, Latch mode

Over Temperature

Latch mode

Short Circuit

Latch mode

Protection Against Shock

Class I

Pollution Degree

MTBF

> 100,000 hrs. at Input: 115Vac, Output: 100% load, Ta: 25°C

Expected Cap Life Time

8760hours (100% load, 115Vac) @ 25°C

Case Temperature Rise

Top case < 45°C & Bottom case < 50°C @ 100Vac & 240Vac, Output: 100% load, Ta: 25°C

Electrical Safety

IEC/EN 62368-1, 60950
BSMI CNS 13438, 14336-1, 15663
PSE J62368-1, J55032, J3000
UL 62368-1, CSA 62368-1
PSB IEC 62368-1:2014, 60950-1:2005+A1:2009+A2:2013

Comply with EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU+ (EU) 2020/659 and Commission Regulation (EU) 2019/1782, ErP Directive

Galvanic Isolation

I/P to O/P: 3000 Vac

Emission

EN 55032 Criteria Class B

Immunity

Electrostatic Discharge IEC 61000-4-2
Radio Frequency Electromagnetic Field IEC 61000-4-3
Electrical Fast Transient IEC 61000-4-4
Surge IEC 61000-4-5
Radio Frequency Common Mode IEC 61000-4-6
Power Frequency Magnetic Fields IEC 61000-4-8
Voltage Dips IEC 61000-4-11

Harmonic Current Emissions

IEC 61000-3-2
The power consumption of EUT is less than 75W and no limits apply

Voltage Fluctuation and Flicker

IEC 61000-3-3
