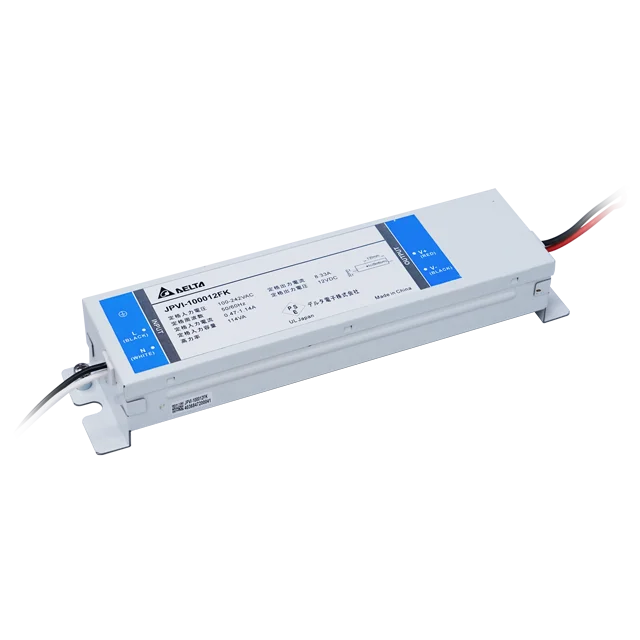

Delta JPVI-100012FK 12V 100W 8.3A LED Driver JPVI S12 Series

Tech Specs

Output Current

8.3A

Output Voltage

12V

Output Power

100W

Output Current Adjustment Range

0.1-8.3A

Max Output Voltage

12.6Vdc

Line Regulation

± 1%

Load Regulation

± 5%

Start-up Time

< 1000ms

Rise Time

< 100ms

Nominal Input Voltage

100 / 200 / 242Vac

Input Voltage Range

90-305Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

1.20A @100Vac
0.60A @200Vac
0.50A @242Vac

Efficiency at 100% load

87.4% @100Vac
90.8% @200Vac
91.1% @242Vac

Inrush Current

35A @ 100Vac and 80A @ 242Vac at cold start

Power Factor at 100% load

> 0.9 @ full load

Leakage Current

< 0.7mA

Total Harmonic Distortion

Meet JIS C 61000-3-2 Class C @ full load

Case Chassis / Cover Metal sheet
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 24dBA, 30cm distance
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.77 kg (1.70 lb)	Dimensions 241.3 x 60 x 40.5 mm 9.50” x 2.36” x 1.59”

Operating Temperature

-10°C to +40°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 90% RH (Non-Condensing)

Vibration (Non-Operating)

5Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction

Storage Humidity

5 to 95% RH (Non-Condensing)

Pollution Degree

IP54 equivalent

Overvoltage

Auto-Recovery when the fault is removed

Overload / Overcurrent

Auto-Recovery when the fault is removed

Over Temperature

Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

Overcurrent

105-130% of full load

MTBF

50,000 hrs.@ lifetime case temperature

Expected Cap Life Time

500,000 hrs.@ 40°C ambient temperature as per Telcordia SR-332

Electrical Safety

PSE Clause 1, Interpretation on Ministerial Ordinance establishing Technical Requirements Appendix 8, Sec. 1, 2 (102) DC Power Supply Unit, Appendix 10 Sec. 5 & Appendix 4 of the Enforcement Regulations (AC Electric Appliances)

Galvanic Isolation

Input to Output: 4,000Vac
Input to Case: 1,500Vac
Output to Case: 500Vac

Emission

Compliance to J55015(H29)

Harmonic Current Emissions

JIS C 61000-3-2

Voltage Fluctuation and Flicker

JIS C 61000-3-3

ESD Immunity

JIS C 61000-4-2

EFT

JIS C 61000-4-4

Surge

JIS C 61000-4-5

Voltage Dips

JIS C 61000-4-11
