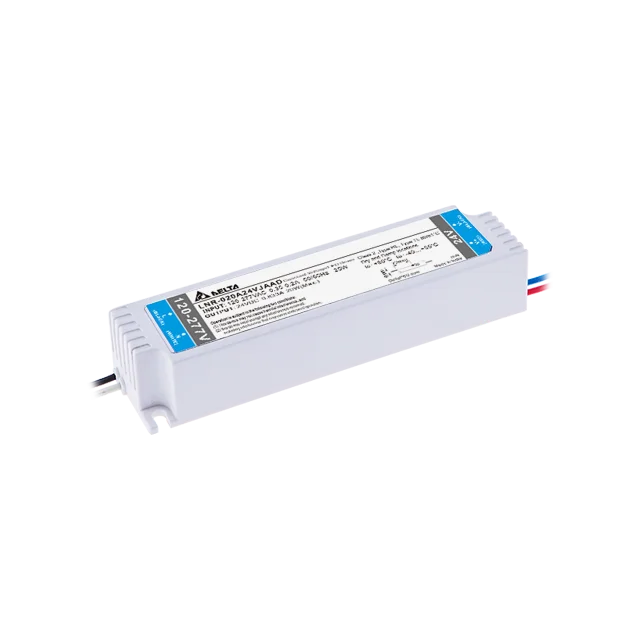

Delta JPVO-030024FB 24V 30W 1.25A LED Driver JPVO S24 Series

Tech Specs

Output Current

1.25A

Output Voltage

24V

Output Power

30W

Output Current Adjustment Range

0.1-1.25A

Max Output Voltage

25.2Vdc

Line Regulation

± 1%

Load Regulation

± 5%

Start-up Time

< 500ms

Rise Time

< 100ms

Nominal Input Voltage

100 / 200 / 242Vac

Input Voltage Range

90-266Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

Input Current

0.35A @100Vac
0.18A @200Vac
0.15A @242Vac

Efficiency at 100% load

85.7% @100Vac
87.7% @200Vac
87.7% @242Vac

Inrush Current

30A/ 250uS @ 100Vac and 60A/ 250uS @ 242Vac at cold start

Power Factor at 100% load

> 0.95 @ full load

Leakage Current

< 0.7mA

Total Harmonic Distortion

Meet JIS C 61000-3-2 Class C @ full load

Case Chassis / Cover Aluminum
Indicator -
Cooling System Convection
Input Terminal Rubber cable (PNCTF type), Line: Black, Neutral: White, PE: Green/Yellow, cable length 150mm
Output Terminal Rubber cable (SJOW type), Positive: Red, Negative: Black, cable length 150mm
Signal Terminal -
Noise Sound Pressure Level (SPL) < 24dBA, 30cm distance
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.67 kg (1.48 lb)	Dimensions 200 x 60 x 44.5 mm 7.87” x 2.36” x 1.75”

Operating Temperature

-40°C to +55°C

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 90% RH (Non-Condensing)

Vibration (Non-Operating)

5Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction

Storage Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

Yes, Latch mode

Overload / Overcurrent

When the LED module is overloaded or overcurrent, the LED driver output will switch from 24V to constant current control mode, and the LED driver will stop working when the output voltage drops by 10 - 20%.

Over Temperature

Yes, Latch mode

Short Circuit

Yes, Latch mode

Degree of Protection

IP67

MTBF

500,000 hrs. @ 40°C ambient temperature as per Telcordia SR-332

Expected Cap Life Time

50,000 hrs. @ lifetime ambient temperature

Electrical Safety

PSE Clause 2, Interpretation on Ministerial Ordinance establishing Technical Requirements Appendix 12: J61347-1(2022), J61347-2-13(H29), Appendix 4 of the Enforcement Regulations (AC Electric Appliances)

Galvanic Isolation

Input to Output : 3,000Vac
Input to Case : 1,500Vac
Output to Case : 500Vac

Emission

(CE & RE)
Compliance to J55015(H29)

Harmonic Current Emissions

JIS C 61000-3-2 Class C @ 100 / 200 / 242Vac, full load condition

Voltage Fluctuation and Flicker

JIS C 61000-3-3 @ Pst ≤ 1.0; dmax ≤ 4%; Plt ≤ 0.65; dc ≤ 3.3%; Tmax ≤ 500ms
