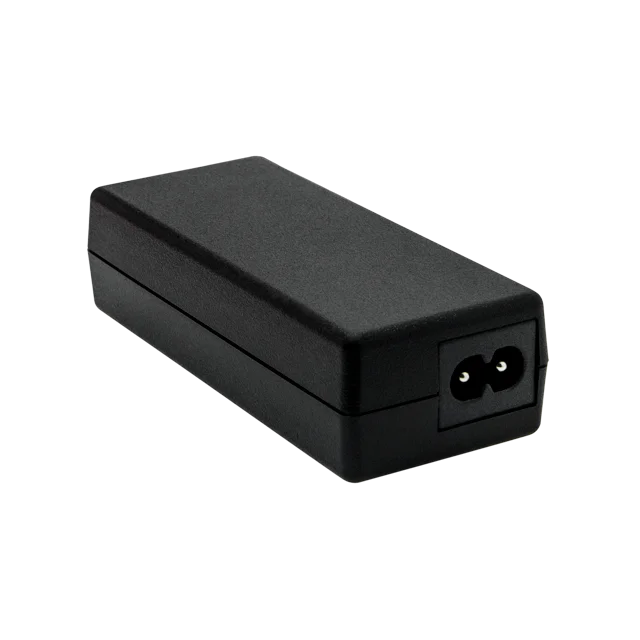

Delta ADT-060A12AB 12V 60W 5A Adapter ADT Series

资源下载

Datasheet

Uploaded on 14-Jul-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 22-Dec-2023

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

BSMI

Uploaded on 19-Jan-2022

Uploaded on 17-Jan-2023

CCC

Uploaded on 06-Mar-2025

CE & UKCA

Uploaded on 14-Jul-2021

FCC

Uploaded on 14-Jul-2021

Uploaded on 22-Apr-2020

PSE

Uploaded on 16-Feb-2024

REACH

Uploaded on 09-May-2024

TSCA

Uploaded on 15-Nov-2023

Uploaded on 14-Jul-2021

GUI Software

Tech Specs

输出电流

输出电压

12V

输出功率

60W

线电压调整率

± 1%

负载调整率

± 5.0%

纹波电压

0°C to 40°C: < 240mVpp
-10°C to 0°C: < 480mVpp

开机时间

1000ms (typ.) at 115Vac, 500ms (typ.) at 230Vac

保持时间

12ms (typ.) at 115Vac, 60ms (typ.) at 230Vac

升压时间

30mS (typ.) at 115Vac & 230Vac

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.4A max. at 115Vac, 1.0A max. at 230Vac

100% 负载效率

87.6% typ. at 115Vac, 90.2% typ. at 230Vac

漏电流

0.1mA @ 240Vac/50Hz (max.)

底座 / 外壳上盖 PC
指示灯 -
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.18 kg (0.40 lb)	尺寸 108 x 46 x 29.5 mm 4.25” x 1.81” x 1.16”

运行温度

-10°C to +60°C
(-20°C cold start @ 100% Load)

储存温度

-40°C to +85°C

功率降级

> 40°C de-rating power by 2.5% / °C
< 90Vac de-rating power by 2% / V

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

Half sine wave, 50G, 11ms, 1 shocks for each direction, 6 direction

振动测试（非运行状态）

5-500Hz, 2.09Grms, 20 minute for X,Y,Z axis

储藏湿度

5 to 95% RH (Non-Condensing)

运行高度

Up to 5,000 meters (up to 16,400 feet)

过压保护

13.2-18.0V, Latch Mode

超负载/过电保护

5.25-10.00A Auto-Recovery when the fault is removed

过热保护

Latch Mode

短路保护

Auto-Recovery when the fault is removed

防震保护

Class II

MTBF

> 700,000 hrs. per Telcordia SR-332 at Input: 115Vac, Output: 100% load, Ta: 25°C

预计最长使用寿命

5 years (50% load @ 25°C)

电气安全

CB scheme: IEC/UL/EN 60950-1, IEC/UL/EN 62368-1, Limited Power Source (LPS)
BSMI: CNS14336-1
CCC: GB4943.1-2011
PSE: J60950-1(H29)
KC: K60950-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3000Vac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

排放

CISPR/EN/BS EN 55032 Class B
BSMI CNS13438
FCC Part 15, ICES-003, ANSI C63.4
GB/T9254- 2008
KN32

抗扰度

EN/BS EN 55024; KN35

谐波电流排放

IEC 61000-3-2: Class D; GB17625.1-2003

电压波动和闪变

IEC 61000-3-3

电压骤降

IEC 61000-4-11
