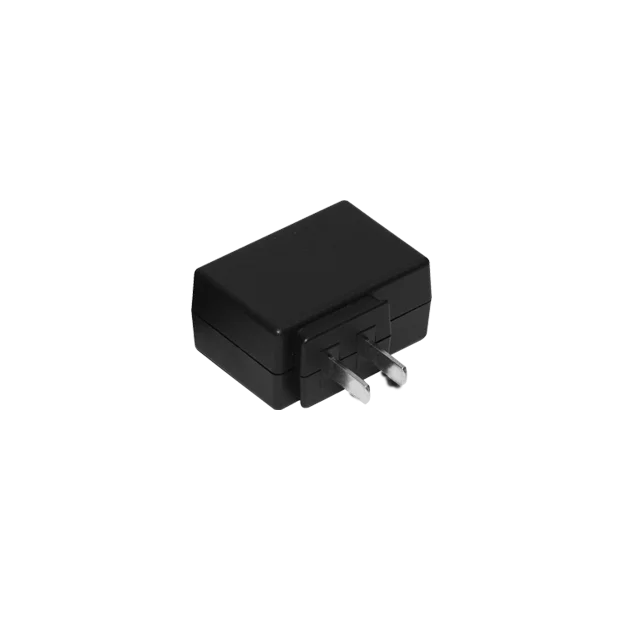

MDS-005AAS05 A

Adapter

MDS Adapter 系列

MDS-005AAS05 A

输出电压

输出功率

输出电流

输入电压范围

90-264Vac

尺寸 (L x W x H)

56.5 x 39.5 x 28 mm

2.22” x 1.56” x 1.10”

重量

0.10 kg (0.22 lb)

亮点与特色

Efficiency Level VI
Safety Approvals to IEC 60601-1 & IEC 62368-1
Class B EMI and 4th Edition Immunity Compliant
IP22 Ingress Protection Rating
1 Million Hours MTBF
IT & Medical Safety Approvals

Optional Models

Model	Description
MDS-005AAS05 AV	China Type with Barrel Type connector
MDS-005AAS05 AU	China Type with Micro USB connector

应用领域

Adapter

MDS Adapter 系列

MDS-005AAS05 A

亮点与特色

Efficiency Level VI
Safety Approvals to IEC 60601-1 & IEC 62368-1
Class B EMI and 4th Edition Immunity Compliant
IP22 Ingress Protection Rating
1 Million Hours MTBF
IT & Medical Safety Approvals

输出电压

输出功率

输出电流

输入电压范围

90-264Vac

尺寸

56.5 x 39.5 x 28 mm

2.22” x 1.56” x 1.10”

重量

0.10 kg (0.22 lb)

应用领域

Optional Models

Model	Description
MDS-005AAS05 AV	China Type with Barrel Type connector
MDS-005AAS05 AU	China Type with Micro USB connector

资源下载

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 25-Dec-2023

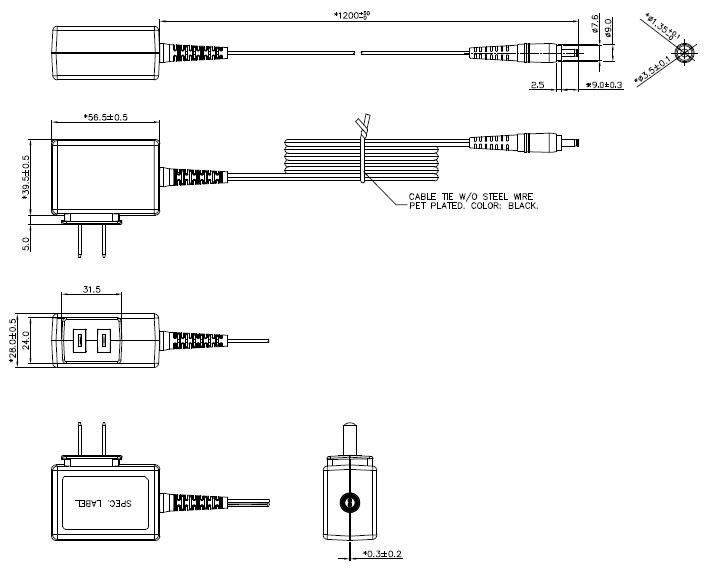

Mechanical Drawing

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Oct-2023

CCC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

GUI Software

Tech Specs

输出电流

输出电压

输出功率

线电压调整率

±5% (max.)

负载调整率

±10% (max.)

开机时间

3000ms @ 115Vac (max.)

保持时间

5ms @ 115Vac (min.)

动态回应

±10% @ 50-100% load (Overshoot & Undershoot O/P Voltage)

额定输入电压

100-240Vac

输入电压范围

90-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

0.2A @ 115Vac ; 0.1A @ 230Vac

100% 负载效率

71% (typ.)

底座 / 外壳上盖 PC / PC
指示灯 -
冷却方式 -
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.10 kg (0.22 lb)	尺寸 56.5 x 39.5 x 28 mm 2.22” x 1.56” x 1.10”

振动测试（运行状态）

5-500Hz, 2.09Grms, 20 minute for each three axis

运行温度

0°C to +40°C

储存温度

-40°C to +85°C

运行湿度

5-95% RH (Non-Condensing)

防震测试（非运行状态）

50G, 11ms, 3 shocks for each direction

过压保护

150% of rated output voltage (Non-latch Mode)

超负载/过电保护

130% of rated load current (Non-Latching, Auto-Recovery)

过热保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

短路保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

防护等级

IP22

防震保护

Class II

MTBF

1 Million Hours based on Telecordia SR-332

电气安全

IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003

MDD Directive 93/42/EEC

医疗安全

IEC 60601-1 CB reports
EN 60601-1, CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES60601-1

电隔离

Input to Output: 4000 Vac

ITE Safety

IEC 60950-1, IEC 62368-1, GB 4943.1, GB 9254, GB 17625.1

排放

EN55011, EN55022, FCC Title 47: Class B

谐波电流排放

IEC61000-3-2: Meet Class A limit

电压波动和闪变

IEC61000-3-3
