Delta DRL-48V240W3ENA 48V 240W 5A DIN Rail DIN Eco Series

资源下载

Datasheet

Uploaded on 18-Feb-2026

Manual

Uploaded on 18-Feb-2026


Uploaded on 18-Feb-2026

Mechanical Drawing

Uploaded on 18-Feb-2026

.DXF

Uploaded on 18-Feb-2026

.STP

Uploaded on 18-Feb-2026

认证

Uploaded on 25-Jan-2026

CCC

Uploaded on 25-Jan-2026

Uploaded on 28-Jan-2026

EAC

Uploaded on 28-Jan-2026

TUV

Uploaded on 28-Jan-2026

UKCA

Uploaded on 28-Jan-2026

GUI Software

Tech Specs

输出电流

输出电压

48V

输出电压调整范围

48-55 Vdc

输出功率

240W

线电压调整率

± 0.5%

负载调整率

± 1%

纹波电压

< 120 mVpp typ. @ 0°C to +70°C
< 300 mVpp typ. @ -30°C to 0°C

开机时间

1500 ms typ. @ nominal input (100% load)

保持时间

25 ms typ. @ 3 x 400 Vac (100% load)

动态回应

± 10% @ 3 x 340-575 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle@ 5 Hz & 10 kHz)

电容性负载启动

8,000 µF Max

升压时间

50 ms typ. @ nominal input (100% load)

额定输入电压

3 x 380-500 Vac

输入电压范围

3 x 340-600 Vac (3-Phase with 100% Load) or 2 x 340-600 Vac (2-Phase with 80% Load)

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

< 0.85 A @ 3 x 400 Vac,
< 0.75 A @ 3 x 500 Vac

100% 负载效率

89.0% typ. @ 3 x 400 Vac & 3 x 500 Vac

涌入电流

50 A typ. @ 3 x 400 Vac & 3 x 500 Vac

功率因数

> 0.4 @ 3 x 400 Vac & 3 x 500 Vac

漏电流

< 1 mA @ 3 x 400 Vac & 3 x 500 Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED DC OK
冷却方式 Convection
输入端 4 Pins (Rated 600 V / 30 A)
输出端 4 Pins (Rated 600 V / 30 A)
信号端 -
声压级（SPL） < 25 dBA
输入/输出端 -
信号 -
安装导轨 Standard TS35 DIN Rail in accordance with EN 60715
电线 Input: AWG 18-10 Output: AWG 16-10
保护结构 -
端子台 -
重量 0.70 kg (1.54 lb)	尺寸 123.6 x 56 x 116.8 mm 4.87” x 2.20” x 4.60”

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 19.6 m/s² (2 G peak); 10 min per cycle, 60 min for X, Y, Z direction.

运行温度

-40°C to +70°C

储存温度

-40°C to +85°C

功率降级

> 50°C de-rate power by 2.5 % / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction, 9 times in total

振动测试（非运行状态）

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 G); 20 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压类别

II (Compliance to EN 62477-1 OVC III with 2,000 meters altitude)

过压保护

< 68 V, SELV Output, Auto-recovery Mode

超负载/过电保护

105 – 180% of rated load current, Auto-recovery (150% Power Boost for 500 ms)

过热保护

Non-Latching (Auto-recovery)

短路保护

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

防护等级

IP20

防震保护

Class I with Primary Earth connection

MTBF

Telcordia SR-332: > 700,000 hrs.
I/P: 3 x 400 Vac & 3 x 500 Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 Years
I/P: 3 x 400 Vac & 3 x 500 Vac, O/P: 50% load, Ta: 40°C

电气安全

TUV Bauart: IEC/EN 62368-1
UL/cUL: UL 62368-1, CSA C22.2; UL 61010-1/-2-201, CAN/CSA-C22.2 No. 61010-1-12
CB scheme: IEC/EN/BS EN 62368-1, AS/NZS 62368-1; IEC/EN 61010-1/-2-201
CCC: GB4943.1
BIS: IS 13252-1 (Part 1)
BSMI: CNS15598-1
EAC: TP TC 004/2011
KC: KC 62368-1 (upon request)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 4.0 kVac
Input to Ground: 2.5 kVac
Output to Ground: 0.5 kVac

安全特低电压

SELV (IEC/EN 61010-1/2-201, IEC/EN 62368-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, AS/NZS CISPR 32 ,Class B; KS C 9832; CNS15936; EN/EN BS 61000-6-4, EN/BS EN 61204-3; Compliance to FCC Title 47

抗扰度

Generic Standards: EN/BS EN 55035; KS C 9835; EN/BS EN 61000-6-2 ; EN/BS EN 61204-3

谐波电流排放

IEC/EN/EN BS 61000-3-2, Class A

电压波动和闪变

IEC/EN/EN BS 61000-3-3, dmax ≤ 4%

(/3) Item(s) selected

DRL-48V240W3ENA

DIN Rail

DIN Eco 系列

DRL-48V240W3ENA

输出电压

输出功率

输出电流

输入电压范围

尺寸 (H x W x D)

重量

亮点与特色

应用领域

DRL-48V240W3ENA

DRL-48V240W3ENA

DIN Rail

DIN Eco 系列

DRL-48V240W3ENA

亮点与特色

输出电压

输出功率

输出电流

输入电压范围

尺寸

重量

应用领域

资源下载

资源下载

Tech Specs

Tech Specs

针对此产品有任何疑问?

针对此产品有任何疑问?

相关产品

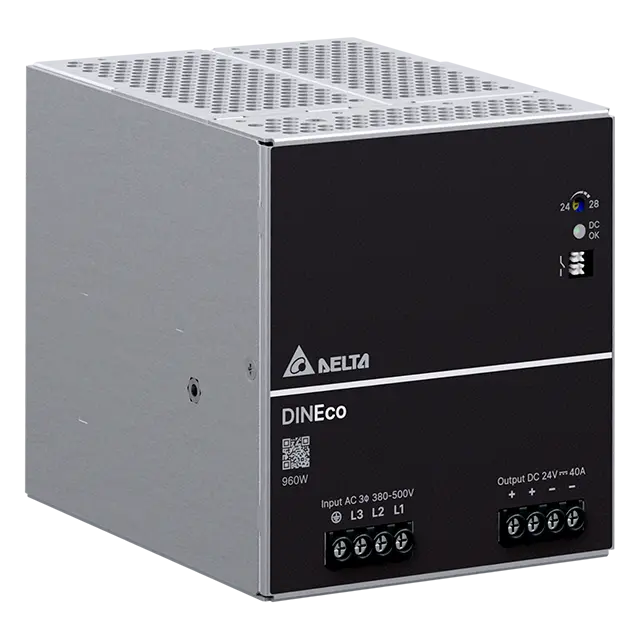

DRL-24V960W3ENA
