LNA-1K6C20ABFGB

LED Driver

LNA ARENA SPORT 系列

LNA-1K6C20ABFGB

输出电压

150-550V

输出功率

1650W

输出电流

输入电压范围

187-528 Vac

尺寸 (L x W x H)

500 x 152 x 77 mm

19.69” x 5.98” x 3.03”

重量

5.4 kg (11.90 lb)

亮点与特色

3 independent programmable output channels
Configurable channel address mode (1*DT6/1*DMX or 3*DT6/3*DMX)
Max. output power 1650 W (3x550 W/channel)
Input voltage range: 187-528 Vac
High efficiency up to 97.5%
Programmable output current range 700-2000 mA
Output voltage range 150-550Vdc per channel
Built-in 2 in 1: DALI-2 & D4i and RDM/DMX communication protocols
Wide dimming range 0.1-100%
Low current ripple (typ.1%) suitable for HDTV broadcasting
Strobe effects up to 33 fps
After-glow effect free
Common output design (V1+=V2+=V3+)
Constant Lumen Output (CLO)
Smart Timer Dimming (STD)
High-accuracy integrated power metering
Max remote distance 300 meters
Input surge protection: DM 10kV / CM 10kV

应用领域

LED Driver

LNA ARENA SPORT 系列

LNA-1K6C20ABFGB

亮点与特色

3 independent programmable output channels
Configurable channel address mode (1*DT6/1*DMX or 3*DT6/3*DMX)
Max. output power 1650 W (3x550 W/channel)
Input voltage range: 187-528 Vac
High efficiency up to 97.5%
Programmable output current range 700-2000 mA
Output voltage range 150-550Vdc per channel
Built-in 2 in 1: DALI-2 & D4i and RDM/DMX communication protocols
Wide dimming range 0.1-100%
Low current ripple (typ.1%) suitable for HDTV broadcasting
Strobe effects up to 33 fps
After-glow effect free
Common output design (V1+=V2+=V3+)
Constant Lumen Output (CLO)
Smart Timer Dimming (STD)
High-accuracy integrated power metering
Max remote distance 300 meters
Input surge protection: DM 10kV / CM 10kV

输出电压

150-550V

输出功率

1650W

输出电流

输入电压范围

187-528 Vac

尺寸

500 x 152 x 77 mm

19.69” x 5.98” x 3.03”

重量

5.4 kg (11.90 lb)

应用领域

资源下载

Datasheet

Uploaded on 23-Sep-2025

Manual

Uploaded on 10-Jan-2025


Uploaded on 16-Jun-2025

Mechanical Drawing

Uploaded on 10-Jan-2025

.DXF

Uploaded on 10-Jan-2025

认证

Uploaded on 10-Jan-2025

CCC

Uploaded on 21-Jan-2025

Uploaded on 10-Jan-2025

ENEC

Uploaded on 10-Jan-2025

FCC

Uploaded on 21-Jan-2025

RCM

Uploaded on 03-Nov-2025

UKCA

Uploaded on 22-Jan-2025

Uploaded on 10-Jan-2025

GUI Software

Tech Specs

输出电流

输出电压

150-550V

输出电压范围

150-550Vdc

输出功率

1650W

输出电流调整范围

0.7-2A

最大输出电压

550Vdc

额定输入电压

208-480 Vac

输入电压范围

187-528 Vac

额定输入频率

50/60 Hz

输入频率范围

47-63Hz

输入电流

7.8A At 220Vac, 25°C, 500V/1.2A @ Pout=1650W
3.6A At 480Vac, 25°C, 500V/1.2A @ Pout=1650W

输入功率（待机模式）

0.5W At 230Vac/50Hz, Output and DALI bus power supply are in OFF status,
in compliance with Erp(EU) 2019/2020

100% 负载效率

96.6% At 220Vac, 25°C, 500V/1.2A @ Pout=1650W
97.2% At 480Vac, 25°C, 500V/1.2A @ Pout=1650W

涌入电流

8A At 220Vac，50%Apk to 50%Apk time: 2ms
14A At 480Vac，50%Apk to 50%Apk time: 2ms

功率因数

0.99 At 220Vac, 25°C, 1650W output
0.97 At 480Vac, 25°C, 1650W output

谐波失真总量

8% At 220Vac/50Hz, 25°C, 1650W output
13.5% At 480Vac/60Hz, 25°C, @ Pout=1650W

底座 / 外壳上盖 Aluminum case, Dark Gray, compliance with C5 environment (ISO 9223)
指示灯 -
冷却方式 Natural Convection
输入端 With the sign of L1, L2, PE
输出端 With the sign of PE, NTC, V3+, V3-, V2+, V2-, V1+, V1-
信号端 -
声压级（SPL） < 24dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 5.4 kg (11.90 lb)	尺寸 500 x 152 x 77 mm 19.69” x 5.98” x 3.03”

运行温度

-40 ~+50°C

储存温度

-40°C to +85°C

运行湿度

10% to 90% RH (Non-Condensing)

振动测试（非运行状态）

IEC 60068-2-6, Random: 5 Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction

储藏湿度

10% to 90% RH (Non-Condensing)

防护等级

IP66

MTBF

475khrs. at Ta=+45°C Telcordia SR-332

预计最长使用寿命

50,000 hours applicable for 220Vac to 480Vac(50/60Hz) @100% of load, @ Ta 45°C

Safety Certificate

ENEC:
EN 61347-2-13:2014, EN 61347-2-13/A1:2017
EN 61347-1:2015, EN 61347-1:2015/A1:2021
EN IEC 62384:2020

CB report: EN 61347-1:2015, EN 61347-1:2015/A1:2021
EN 61347-2-13:2014, EN 61347-2-13/A1:2017

UL: UL Compliant ANSI / UL8750 2nd Ed., CSA C22.2 No.250.13, 4th Ed.

RCM: AS 61347-2-13: 2018
AS/NZS 61347-1: 2016+A1

CCC: GB 19510.1 GB 19510.14

CE Declaration of Conformity.

UKCA

BS EN 61347-2-13: 2014+A1:2017

排放

Radiated Emission EN55015
GB/T17743, FCC Part 15 Subpart B

谐波电流排放

IEC 61000-3-2, GB 17625.1

电压波动和闪变

EN61000-3-3

ESD 抗扰度

EN 61000-4-2

EFT

EN 61000-4-4

电涌

(AC Mains)
EN 61000-4-5
- Common Mode: 10kV (L1 to Earth, L2 to Earth)
- Differential Mode: 10kV (L1 to L2)

磁场

EN 61000-4-3

电压骤降

EN 61000-4-11

(/3) Item(s) selected

LNA-1K6C20ABFGB

LED Driver

LNA ARENA SPORT 系列

LNA-1K6C20ABFGB

输出电压

输出功率

输出电流

输入电压范围

尺寸 (L x W x H)

重量

亮点与特色

应用领域

LNA-1K6C20ABFGB

LNA-1K6C20ABFGB

LED Driver

LNA ARENA SPORT 系列

LNA-1K6C20ABFGB

亮点与特色

输出电压

输出功率

输出电流

输入电压范围

尺寸

重量

应用领域

资源下载

资源下载

Tech Specs

Tech Specs

针对此产品有任何疑问?

针对此产品有任何疑问?

相关产品

LNA-1K2B20ABFGB

输出电压

输出功率

输出电流

输入电压范围

尺寸 (L x W x H)

500 x 152 x 77 mm

19.69” x 5.98” x 3.03”

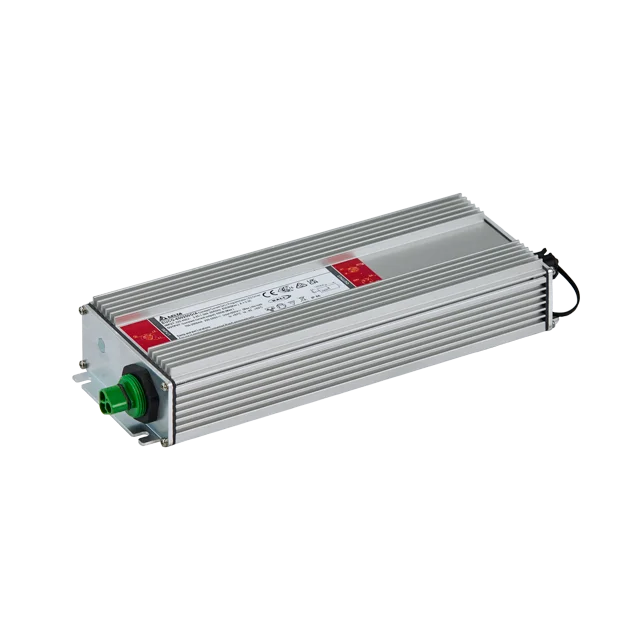

JPVO-150024FB
