PJ-5V15W

Open Frame

PJ Series

PJ-5V15W

Output Voltage

Output Power

15W

Output Current

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

87.5 x 50 x 22 mm (Open Frame)
107.5 x 60 x 32 mm (Enclosed)
3.44" x 1.96" x 0.86" (Open Frame)
4.23" x 2.36" x 1.25" (Enclosed)

Unit Weight

0.06 kg (Open Frame)
0.15 kg (Enclosed) (0.13 lb)

Highlights & Features

Universal AC input voltage range
Low Inrush Current / Low Leakage Current
High efficiency
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Conformal coating on PCBA to protect against chemical and dust pollutants
Versatile configuration options: Open Frame, L Frame, Enclosed
Long life capacitors

Optional Models

Model	Description
PJ-5V15WBNA	Open Frame
PJ-5V15WLNA	L Frame
PJ-5V15WCNA	Enclosed

Applications

Download

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020


Uploaded on 25-Dec-2023

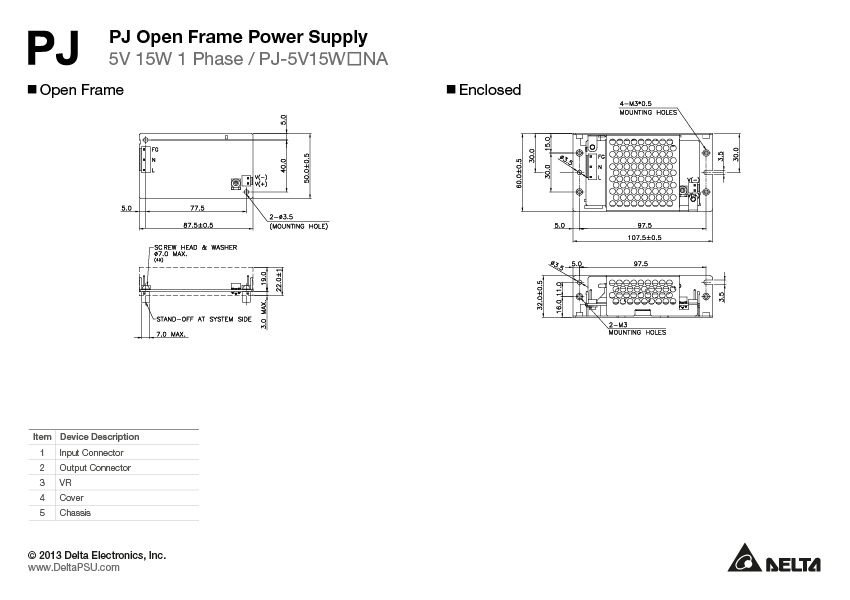

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 27-Jul-2021

REACH

Uploaded on 09-Oct-2025

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 29-Oct-2020

Uploaded on 15-Dec-2020

GUI Software

Tech Specs

Output Current

Output Voltage

Output Voltage Adjustment Range

4.5-5.5Vdc

Output Power

15W

Line Regulation

< 20mV (@ 100Vac @ 200Vac input, 100% load)

Load Regulation

< 40mV (@ 100Vac @ 200Vac input, 100% load)

Start-up Time

200ms typ. @ 100Vac (100% load)

Hold-up Time

20ms typ. @ 100Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load

Start-up with Capacitive Loads

8,000µF Max

Ripple & Noise

< 120 mVpp @ 0°C to 50°C,
< 160 mVpp @ -10°C to

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

0.35A typ. @ 100Vac,
0.20A typ. @ 200Vac

Efficiency at 100% load

78.0% typ. @ 100Vac,
79.5% typ. @ 200Vac

Inrush Current

15A typ. @ 100Vac,
30A typ. @ 200Vac

Leakage Current

0.1mA @ 100Vac,
0.2mA @ 240Vac

Case Chassis / Cover SGCC
Indicator -
Cooling System Convection
Input Terminal JST B3P5-VH (LF)(SN)
Output Terminal JST B2P-VH (LF)(SN)
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 22-18
Protection Structure -
Terminal -
Unit Weight 0.06 kg (Open Frame) 0.15 kg (Enclosed) (0.13 lb)	Dimensions 87.5 x 50 x 22 mm (Open Frame) 107.5 x 60 x 32 mm (Enclosed) 3.44" x 1.96" x 0.86" (Open Frame) 4.23" x 2.36" x 1.25" (Enclosed)

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 55Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min per axis for all X, Y, Z direction

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +75°C

Power De-rating

> 50°C de-rate power by 2.5% / °C
< 90Vac de-rate power by 2% / V

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Overvoltage

5.75-7.00V, Latch Mode

Overload / Overcurrent

> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

Expected Cap Life Time

10 years (115 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognizedP: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Immunity

EN/BS EN 55024

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
